0435A3B - 4 19/.0469 BC 1283

Description

4 19/ BC 1283

Product #

0435A3B

Gauge

4 AWG

Stranding

19/0469 BC

Insulation

PVC

Voltage

1000V, 600V

Temperature

105C

Style

MTW/AWM, 1283

Notes

​

Print Legend

​

Diameter

0.36

Tolerance +/-

0.005

Nom Wall

0.06

Min Wall

0.054

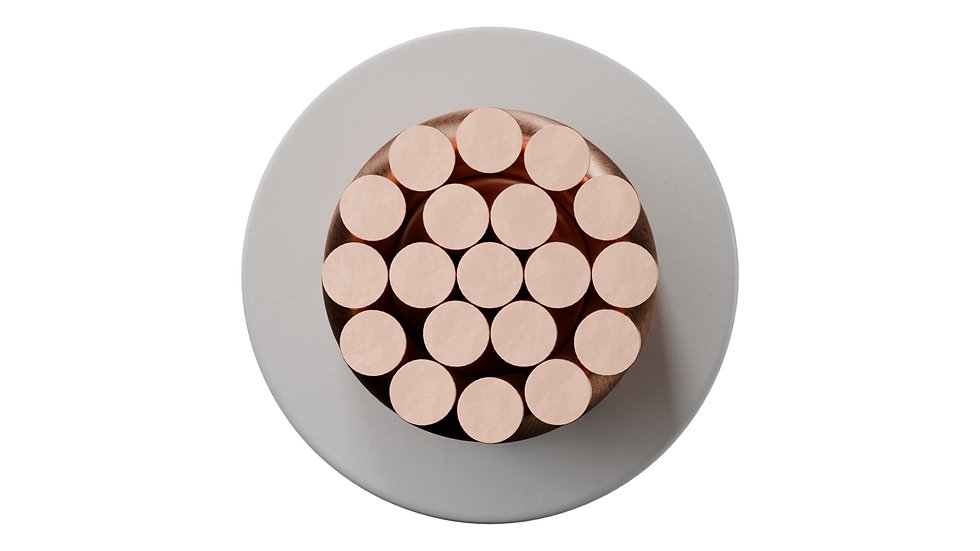

Cross section diagram.png

Tolerances unless otherwise noted:
FRACTIONS +/- 1/32, DECIMALS +/- 0.03 (2PL) +/-0.005 (3PL)
