Diameter
0.173
Tolerance +/-
0.003
Nom Wall
0.031
Min Wall
0.022
Tolerances unless otherwise noted:
FRACTIONS +/- 1/32, DECIMALS +/- 0.03 (2PL) +/-0.005 (3PL)
%201023B3B%20ST%2019%20A2.png)
Description
10 UL/GXL
Product #
1023B3B
Gauge
10 AWG
Stranding
19/23 BC
Insulation
XLPE
Voltage
60V DC
Temperature
125C Type 3
Style
SAE, J-1128, 202012
Notes
N/A
Print Legend
E515416 10 AWG (UL) SAE GXL3 125C
%201023B3B%20ST%2019%20A1w.png)

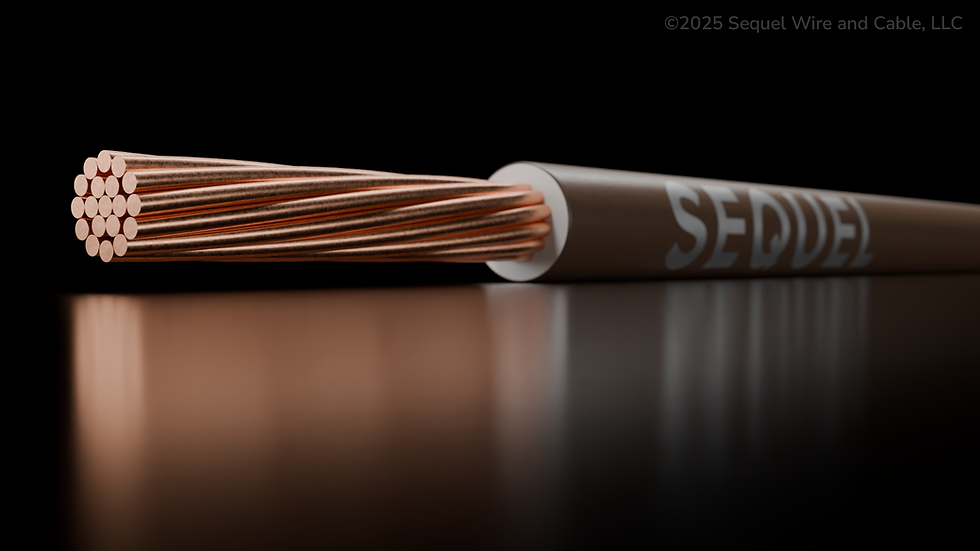

1023B3B - 10 19/23 BC UL/SAE GXL3
