Diameter
0.145
Tolerance +/-
0.003
Nom Wall
0.015
Min Wall
0.013
Tolerances unless otherwise noted:
FRACTIONS +/- 1/32, DECIMALS +/- 0.03 (2PL) +/-0.005 (3PL)

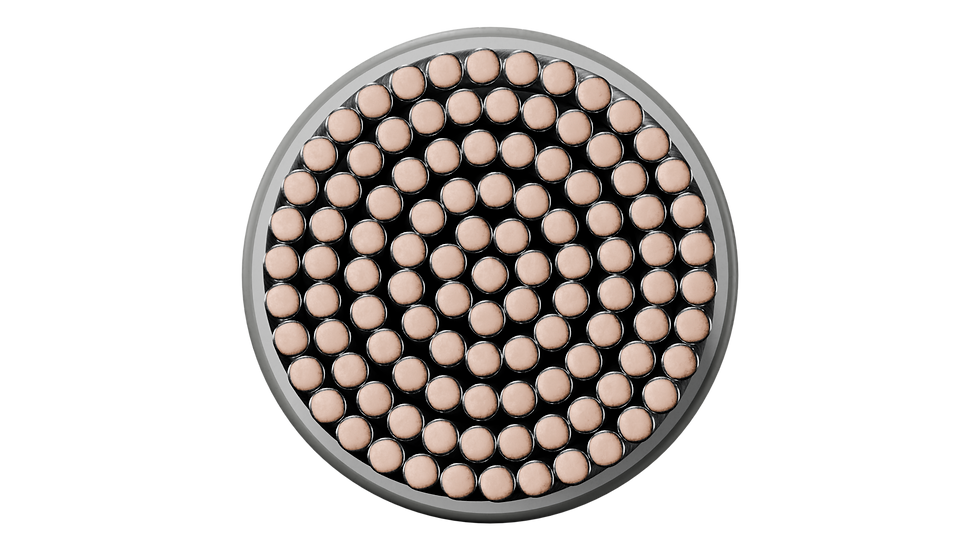

%201032A4T%20ST%20105%20A2.png)
Description
10 105/ TC 1569
Product #
1032A4T
Gauge
10 AWG
Stranding
105/30 TC LHL
Insulation
PVC
Voltage
300V DC
Temperature
105C
Style
1569
Notes
N/A
Print Legend
E511593 10 AWG (5.261mm2) UR AWM
1569 105C 300V VW-1 -- 301259 CSA AWM
I A/B 105C 300V FT1
%201032A4T%20ST%20105%20A1w.png)
1032A4T - 10 105/30 TC 1569
