1413B3B - 14 19/27 BC GPT MARINE

Description

14 GPT2 Marine

Product #

1413B3B

Gauge

14 AWG

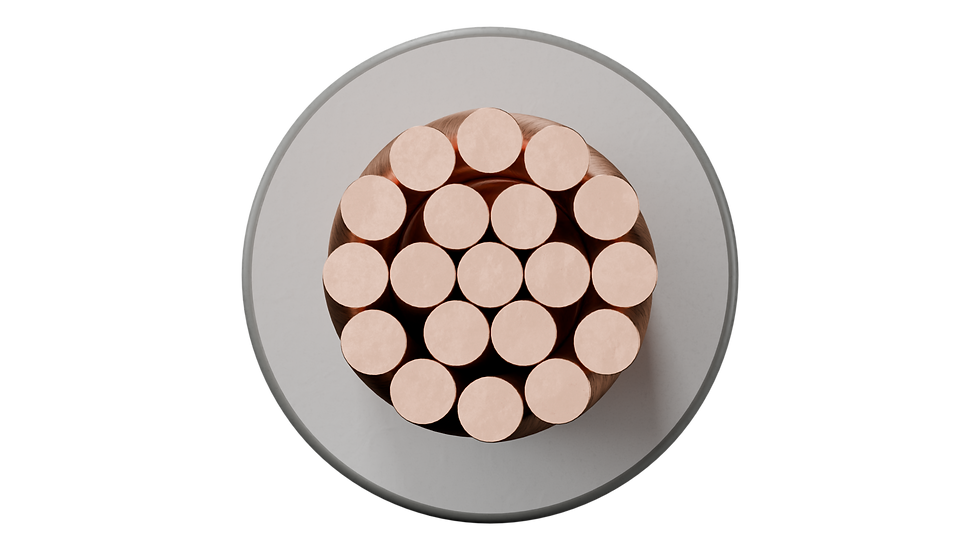

Stranding

19/27 BC LHL

Insulation

PVC

Voltage

60V

Temperature

105C TYPE 2

Style

GPT2 per SAE, J-1128, 202012

Notes

N/A

Print Legend

SEQUEL 14 AWG Marine SAE J378 and SAE
J1128 105C 60V DC

Diameter

0.119

Tolerance +/-

0.003

Nom Wall

0.023

Min Wall

0.016

Tolerances unless otherwise noted:
FRACTIONS +/- 1/32, DECIMALS +/- 0.03 (2PL) +/-0.005 (3PL)
