1633A4T - 16 26/30 TC 1015

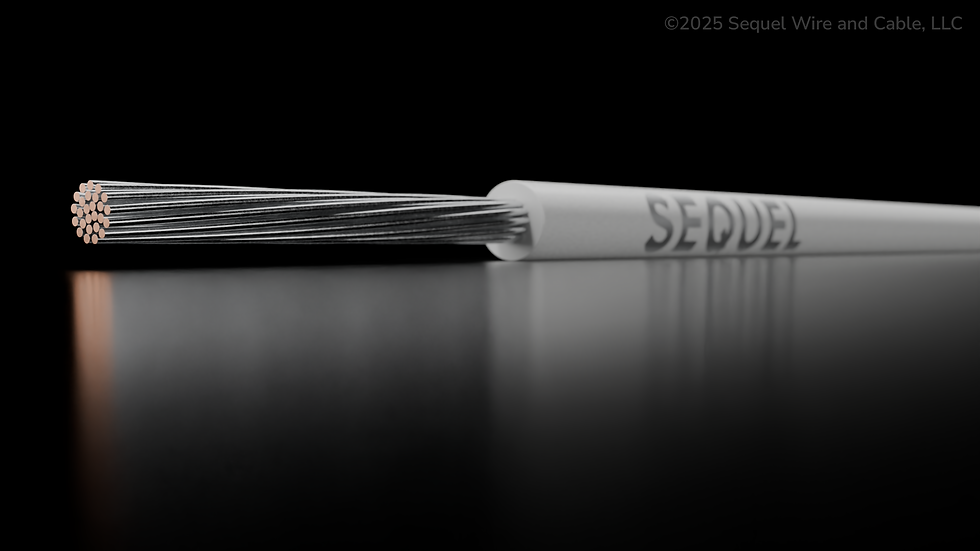

%201633A4T%20ST%2026%20A1w.png)
%201633A4T%20ST%2026%20A2.png)
Description
16 Boat/MTW/1015
Product #
1633A4T
Gauge
16 AWG
Stranding
26/30 TC LHL
Insulation
PVC
Voltage
600V DC/1000V DC
Temperature
105 C
Style
Boat, MTW, 1011, 1015, 1230, 1335, 1032, TEW
Notes
1. Insulating material tested to rate -40C
Print Legend
E517536 16 AWG (1.31mm2) (UL) BC-5W2
or MTW or AWM 1011/1015/1230/1335
105C 600V or 1032 1000V MOISTURE
RESISTANT VW-1 -- 301259 CSA TEW or
AWM I A/B 105C 600V FT1
Diameter
0.114
Tolerance +/-
0.003
Nom Wall
0.03
Min Wall
0.027
Tolerances unless otherwise noted:
FRACTIONS +/- 1/32, DECIMALS +/- 0.03 (2PL) +/-0.005 (3PL)
