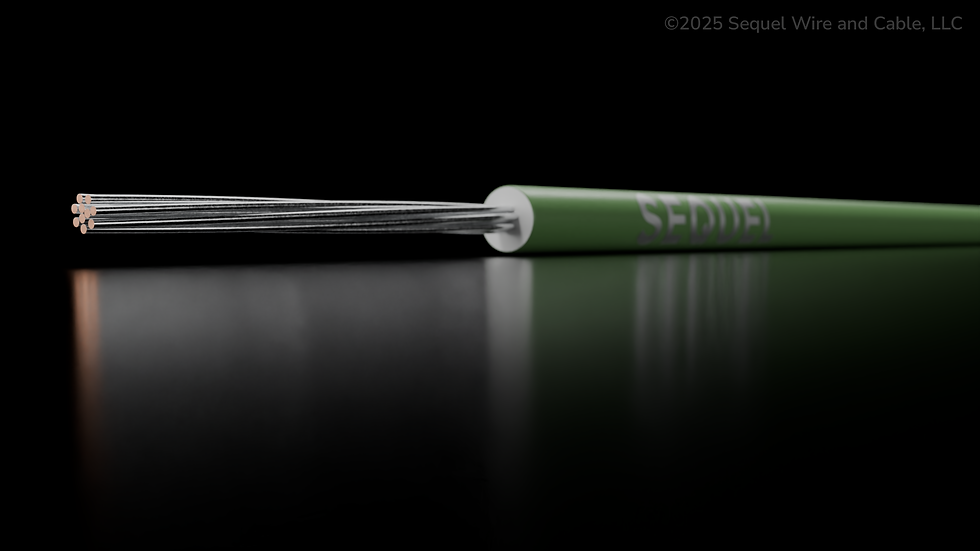

2033A4T - 20 10/30 TC 1015
%202033A4T%20ST%2010%20A1w.png)
%202033A4T%20ST%2010%20A2.png)
Description
20 MTW/1015
Product #
2033A4T
Gauge
20 AWG
Stranding
10/30 TC LHL
Insulation
PVC
Voltage
600V DC/1000V DC
Temperature
105 C
Style
MTW, 1011, 1015, 1230, 1335, 1032, TEW
Notes
1. Insulating material tested to rate -40C
Print Legend
E516147 20 AWG (0.519mm2) (UL) MTW or
AWM 1011/1015/1230/1335 105C 600V or
1032 1000V MOISTURE RESISTANT VW-1 --
301259 CSA TEW 105C 600V FT1 or AWM I
A/B 105C 600V FT1
Diameter
0.095
Tolerance +/-
0.003
Nom Wall
0.03
Min Wall
0.027
Tolerances unless otherwise noted:
FRACTIONS +/- 1/32, DECIMALS +/- 0.03 (2PL) +/-0.005 (3PL)
